Cement Plants
Refractory applications are critical in various parts of a cement plant due to the high temperatures and harsh environments involved in the cement production process.
At Refractory Chauhan Group, we specialize in the construction and maintenance of cement plants, offering comprehensive solutions to ensure your operations run smoothly and efficiently. Our team of experts brings years of experience and advanced technology to every project, delivering exceptional results tailored to your needs.
Primary Areas of Refractories in Cement Industry :
1. Preheater Towers and Cyclones
Preheater towers, which include several cyclones, are used in cement factories. Raw materials are fed into the top of the preheater tower through the cyclones and fall to the bottom of the tower. These Area of preheater towers and cyclones experience lower temperatures (up to 1000°C) but require good thermal shock resistance and abrasion resistance. Low cement refractory castables and refractory dense castables. High alumina castable refractory or silicon carbide refractory are commonly used.
2. Kiln Hood
Subject to thermal shock and high temperatures. Refractories such as high alumina bricks, castables, and precast shapes are used. These is basically hood type structure.
3. Clinker Coolers
Clinker coolers, often referred to as grate coolers or cement coolers, are essential pieces of machinery used in the manufacturing of cement clinker. The primary function of the clinker cooler is to transfer and cool cement clinker.
Refractory materials in clinker coolers need to withstand moderate temperatures. Refractory castables, high alumina bricks, and silicon carbide refractories are often used.

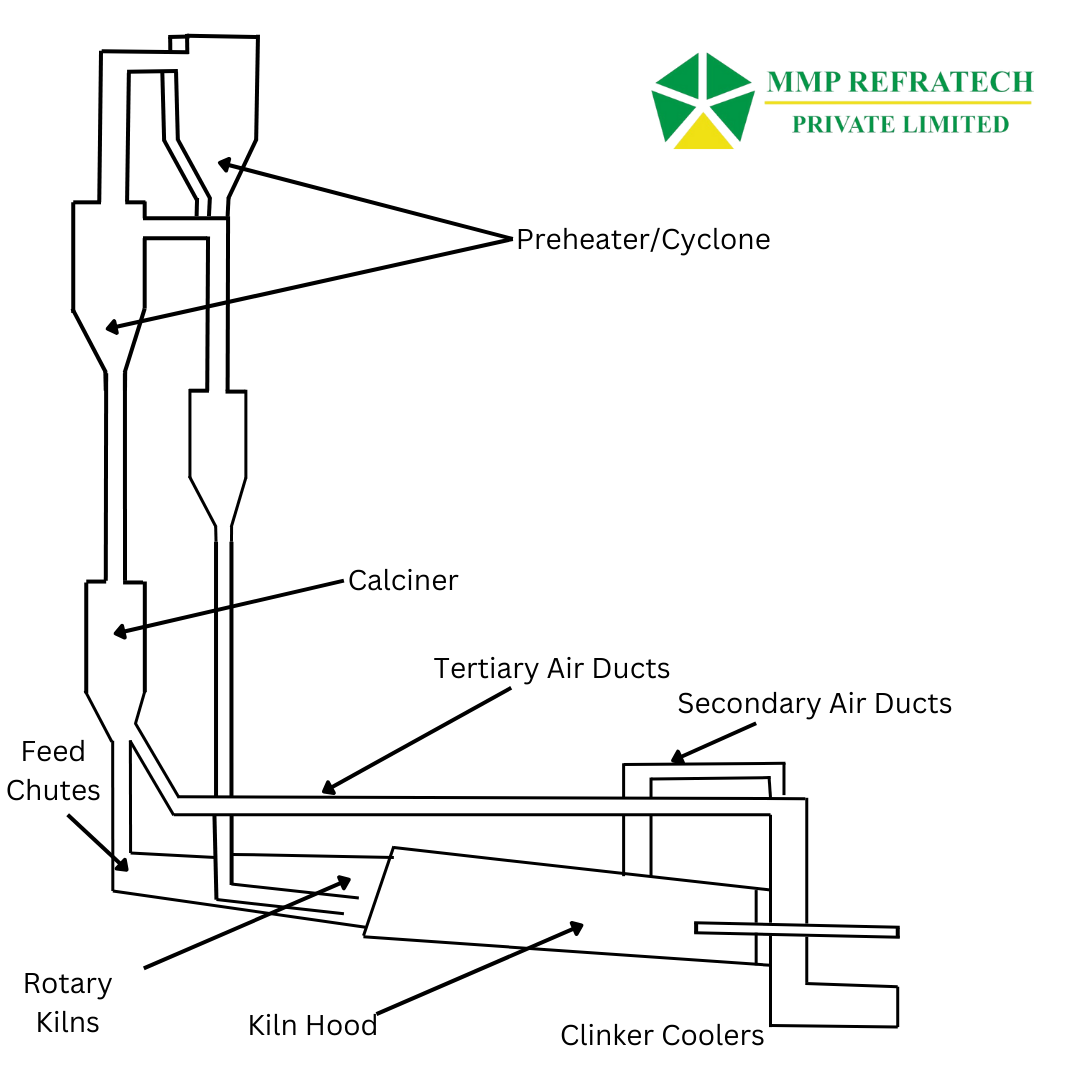

Process Diagram of Cement Manufacturing Plant
5. Clinker Silo and Clinker Storage Areas
Clinker, a material produced in cement plants when raw meal is burnt, is kept in silos for storage. These areas need materials that can resist abrasion, dust resistant and thermal stress. High alumina bricks and castables are typically used.
4. Rotary Kilns
A massive, horizontal, slightly inclining piece of machinery called a rotary kiln is used in the manufacturing of cement to convert limestone into calcium oxide, which is a component of cement clinker particles.
-
Burning Zone: Subject to the highest temperatures (up to 1500 °C) and chemical attack by cement clinkers. Basic refractories such as magnesia-spinel and dolomite bricks are used.
-
Transition Zones: Experiences fluctuating temperatures and mechanical wear. Alumina silicate refractories and magnesia chromite refractories are commonly used.
-
Preheating Zone: Lower temperatures compared to the burning zone but still requires materials that can withstand chemical attack and thermal shock. Alumina bricks are typically used
6. Calciner
It is designed to heat materials to very high temperatures in a controlled environment, often for the purpose of decomposition, oxidation, or other chemical reactions. In the cement industry, a calciner is commonly used to preheat and calcine raw materials before they enter the rotary kiln for clinker production. This process helps optimize energy efficiency and reduce fuel consumption in cement manufacturing.
Operates at high temperatures and requires refractories with good thermal stability and resistance to chemical attack. High refractory fire bricks and castables are commonly used.
7. Tertiary Air Ducts
Tertiary Air Ducts is an important part. These ducts carry hot air from the clinker cooler to the kiln, requiring materials with good thermal insulation and abrasion resistance. Refractory castables and insulating bricks are typically used.
8. Secondary Air Ducts
Secondary air ducts in the cement industry are channels or passages that supply additional air to the rotary kiln for combustion and fuel efficiency. These ducts play a crucial role in the cement manufacturing process by ensuring proper air distribution and temperature control within the kiln. Secondary air is introduced into the kiln to support the combustion of fuel and maintain the required temperature levels for clinker formation. By regulating the flow of secondary air through these ducts, operators can optimize the burning process and enhance the overall efficiency of cement production.
Similar to tertiary air ducts, these also require refractory materials that can handle high temperatures and abrasion. Refractory Castables and insulating bricks are used here.
9. Feed Chutes
Feed chutes in the cement industry are structures or channels that facilitate the controlled transfer of raw materials, such as limestone, clay, and other additives, into the cement manufacturing process. These chutes are designed to deliver a consistent and regulated flow of materials from storage silos or hoppers to the primary processing equipment, such as crushers, mills, and kilns
These regions must be durable to wear and tear and impact. Castables with high alumina and silicon carbide are often used.
10. Dampers and Valves
Dampers itself says damping the parts together. These Require refractories that can handle thermal shock and continous mechanical stress. High sustainable alumina bricks and special refractory castables are used.
Refractory materials are integral to the efficient and safe operation of cement plants. Selecting the right type of refractory for each area ensures the longevity and performance of the equipment, reduces downtime, and enhances overall productivity. By understanding the specific requirements of each area within a cement plant, manufacturers can optimize their refractory usage, leading to more sustainable and cost-effective operations. Refractory Chauhan Group provide various kind of refractory materials and installation in cement industry with customize specifications
For more information on refractory materials and their applications in the cement industry, Contact us at Refractory Chauhan Group today. Our experts are ready to help you choose the best solutions for your specific needs.
