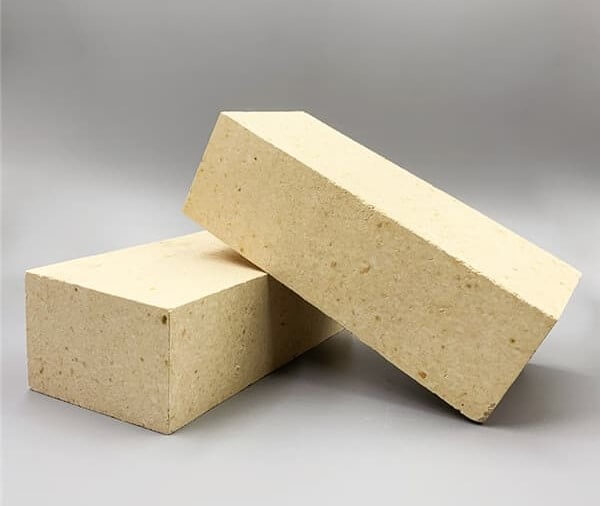

Fire Bricks
We manufacture high quality Fire Bricks. Each lot is manufactured using high quality tested raw materials, fired efficiently under strict quality control and proven production technology to maintain consistency. Fire Bricks manufacturing has a stringent IQC and OQC procedure ensuring each batch conforms to the specification.
Refractory Chauhan Group has a long experience and great expertise in manufacturing high quality fire bricks for use by its clients in various industries.
Our Range of Firebricks
1. Normal Medium and High Heat Duty Bricks
Designed for applications that require moderate to high thermal resistance, these bricks are perfect for industrial setups where efficient heat management is critical. Their robust construction ensures consistent performance even in challenging environments.
2. Super Heat Duty Bricks
Built to withstand extremely high temperatures, our super heat duty bricks are ideal for furnaces, kilns, and other high-heat equipment. These bricks are specifically engineered to resist wear and tear caused by prolonged exposure to intense heat.
3. Low Iron Oxide Alumina Bricks
For industries requiring superior resistance to chemical corrosion and thermal shock, our low iron oxide alumina bricks are the perfect choice. These bricks minimize contamination risks and ensure longevity, making them suitable for sensitive operations.
4. High Alumina Bricks
With high alumina content, these bricks offer outstanding thermal resistance, mechanical strength, and resistance to slag attack. They are widely used in steel plants, cement kilns, and other high-temperature industrial processes.
5. Blast Furnace and Stove Bricks
Specifically designed for blast furnaces and hot stoves, these bricks provide exceptional durability and heat resistance. They can withstand the rigorous thermal cycles and mechanical stresses typical of these demanding applications.
Why Choose Refractory Chauhan Group Firebricks?
- Superior Thermal Performance: Our firebricks are engineered to withstand extreme temperatures, ensuring efficiency and reliability in high-heat environments.
- Exceptional Durability: Made from high-quality raw materials, our firebricks offer excellent resistance to wear, thermal shock, and chemical attack.
- Customizable Solutions: We offer a variety of firebrick options to suit the specific needs of your industrial operations.
- Trusted Expertise: With years of experience in the refractory industry, our team provides tailored solutions backed by technical expertise.
Applications of Refractory Chauhan Group Firebricks
Our firebricks are extensively used in:
- Furnaces and Kilns
- Boilers
- Incinerators
- Steel Plants
- Cement Plants
- Chemical Processing Units
- Glass Industries
Fire Bricks Standard Sizes :
| Product Name | Chemical Analysis (wt%) Al2O3 | Chemical Analysis (wt%) Fe203 | Apparent Porosity (%) | Bulk Density (g/cc) Min | CCS (kg/cm²) | PLC (%) | PCE (°C/OC) Min | RUL (TPC) | Application Area |
|---|---|---|---|---|---|---|---|---|---|
| MMP30D | 28-31 | 1.7-2.2 | 13-18 | 2.1 | 400-700 | ±0.5 at 1300°C/2h | 1330-1360 | Back up of Aluminium Pot Furnace and other applications | |
| MMP40 | 36-40 | 2.5-3.5 | 17-22 | 2.15 | 350-550 | -0.8 to 0.3 at 1450°C/2h | 1659/29 | 1350-1400 | Cement Preheater, Cyclone, Silicate Furnace & other moderate heat applications |
| MMP40S | 38-41 | 1.8-2.5 | 16-21 | 2.2 | 400-600 | -1.0 to 0.3 at 1450°C/2h | 1665/30 | 1370-1420 | Special bricks for Cement Preheater |
| MMP42D | 41-43 | 1.3-1.7 | 15-18 | 2.25 | 450-650 | -0.6 to 0.2 at 1450°C/2h | 1717/32 | 1450-1480 | Dense brick for Blast Furnace & Anode Baking Furnace (ABF) |
| MMP45 | 42-45 | 2.5-3.5 | 17-22 | 2.23 | 400-600 | -0.8 to 0.3 at 1400°C/2h | 1665/30 | 1360-1410 | Cement Preheater, Cyclone, Silicate Furnace & other moderate heat applications |
| MMP45S | 42-46 | 1.8-2.3 | 16-21 | 2.25 | 400-600 | -0.8 to 0.3 at 1400°C/2h | 1683/31 | 1390-1440 | Special purpose Cement Preheater, Cyclone, Chemical Plants, Sulphur Furnaces, Lime Kiln & Glass Tank Furnace |
| MMP45D | 44-48 | 1.2-1.5 | 14-18 | 2.35 | 450-700 | -0.5 to 0.2 at 1450°C/2h | 1743/33 | 1460-1500 | Blast Furnace, Preheating Zone of Cement Rotary Kiln, Lime Kiln & Glass Tank Furnace |
| MMPRW | 17-21 | 2.25 | 400-600 | -1.0 to 0.2 at 1450°C/2h | 1683/31 | 1390-1440 | Reheating Furnace Wall | ||
| MMP50 | 47-50 | 2.6-3.5 | 17-21 | 2.32 | 450-650 | -0.8 to 0.4 at 1450°C/2h | 1717/32 | 1400-1450 | Preheating Zone of Cement Rotary Kiln & Reheating Furnace Wall |
| MMP50S | 47-50 | 1.8-2.2 | 16-21 | 2.3 | 450-650 | -1.0 to 0.2 at 1450°C/2h | 1683/31 | 1390-1440 | Dense brick for Petro-Chemicals, Fertilizer Plants & Anode Baking Furnace |
| MMPRR | 16-22 | 2.35 | 450-650 | -0.5 to 1.0 at 1450°C/2h | 1743/33 | 1430-1480 | Reheating Furnace Roof | ||
| MMP55 | 52-55 | 2.9-3.9 | 17-22 | 2.42 | 450-650 | -0.8 to 0.3 at 1500°C/2h | 1763/34 | 1450-1500 | Preheating Zone of Cement Rotary Kiln & Reheating Furnace Wall |
| MMP55S | 52-56 | 1.7-2.2 | 16-21 | 2.35 | 500-700 | -0.8 to 0.3 at 1500°C/2h | 1763/34 | 1450-1500 | Reheating Furnace Roof & Petro-Chemicals |
| MMPSILL | 56-59 | 1.0-1.5 | 17-21 | 2.35 | 400-600 | ±0.7 at 1500°C/2h | 1804/36 | 1500-1540 | Glass Tank Furnace & Frit Furnace |
| MMP60 | 57-60 | 3.4-4.2 | 17-22 | 2.5 | 550-800 | -0.4 to 2.0 at 1450°C/25 | 1785/35 | 1500-1540 | Reheating Furnace Wall, Ladle Back up |
| MMP60L | 57-61 | 2.8-3.8 | 17-22 | 2.45 | 500-800 | -0.2 to 2.2 at 1500°C/2h | 1785/35 | 1430-1470 | Reheating Furnace Wall, Ladle Back up |
| MMP60S | 58-61 | 1.7-2.2 | 16-21 | 2.45 | 500-800 | -0.4 to 0.8 at 1500°C/2h | 1804/36 | 1500-1550 | Blast Furnace Stove Checkers, Solid Wall Bricks & Glass Tank Furnace |
| MMP60M | 59-61 | 0.9-1.1 | 14-18 | 2.45 | 600-800 | ±0.5 at 1600°C | 1820/37 | 1630-1670 | Blast Furnace Stove Checkers, Solid Wall Bricks & Glass Tank Furnace |
| MMP62D8 | 61-63 | 1.2-1.7 | 14-18 | 2.45 | 500-800 | ±0.8 at 1500°C | 1785/35 | 1500-1530 | Blast Furnace Hearth, Non-Recovery Coke Oven, Glass Tank Furnace & Frit Furnace |
| MMP62D | 61-64 | 1.2-1.5 | 13-16 | 2.5 | 600-900 | ±0.5 at 1500°C/2h | 1804/36 | 1500-1550 | Blast Furnace Hearth, Non-Recovery Coke Oven, Glass Tank Furnace |
| MMP62BRN | 62-64 | 0.9-1.2 | 13-15 | 2.5 | 650-900 | ±0.2 at 1500°C/2h | 1820/37 | 1500-1550 | Blast Furnace Hearth, Non-Recovery Coke Oven, Glass Tank Furnace |
| MMP70N | 64-67 | 3.5-4.4 | 17-23 | 2.55 | 500-800 | ±0.5 to 2.5 at 1450°C/2h | 1804/36 | 1440-1470 | Boiler, Cupola & Steel Foundry |
| MMP70 | 67-70 | 3.4-4.0 | 17-22 | 2.6 | 600-900 | ±0.2 to ±0.3 at 1450°C/2h | 1804/36 | 1460-1480 | Furnace, Boiler, Cupola, Steel Foundry & Reheating |
| MMP70S | 67-70 | 2.8-3.2 | 17-22 | 2.5 | 600-900 | 0.5 to 3.0 at 1500°C/2h | 1804/36 | 1460-1480 | Burning Zone of Cement Rotary Kiln & Steel Ladle |
| MMP70L | 67-70 | 2.4-2.8 | 16-21 | 2.55 | 600-800 | 0.5 to 2.5 at 1500°C/2h | 1804/36 | 1460-1490 | Burning Zone of Cement Rotary Kiln & Steel Ladle |
| MMP70/20 | 68-71 | 1.8-2.2 | 16-21 | 2.55 | 600-900 | 0.2 to 2.0 at 1500°C/2h | 1804/36 | 1470-1500 | Burning Zone of Cement Rotary Kiln & Steel Ladle |
| MMP 70LI | 68-72 | 1.4-1.8 | 16-21 | 2.55 | 600-900 | ±0.2 at 0.2 | 1820/37 | 1500-1530 | Burning Zone of Cement Rotary Kiln, Lime Kiln & Steel Ladle. |
| MMP 70M | 69-72 | 0.4-0.8 | 15-18 | 2.55 | 600-900 | ±0.2 at 0.2 | 1820/37 | 1550-1700 | Blast Furnace Hearth & Taphole, Lime Kilns, Glass Tank Furnace & Non-recovery Coke Oven. |
| MMP 75 | 71-75 | 2.8-3.5 | 17-22 | 2.65 | 500-900 | ±0.3 at 0.3 | 1820/37 | 1470-1490 | Blast Furnace Hearth, Lime Kiln, Glass Tank Furnace & Non-recovery Coke Oven. |
| MMP 80S | 74-78 | 2.8-3.5 | 17-22 | 2.72 | 700-900 | ±0.3 at 0.3 | 1820/37 | 1470-1500 | EAF Roof, Steel Rolling Mill & Steel Ladle. |
| MMP 80L | 77-80 | 2.2-2.7 | 17-22 | 2.72 | 700-900 | ±0.2 at 0.2 | 1550/38 | 1490-1520 | EAF Roof, Steel Rolling Mill, Steel Ladle & other high heat duty special applications. |
| MMP 80 | 78-81 | 1.5-2.0 | 15-19 | 2.75 | 750-1000 | ±0.15 at 0.2 | 1820/37 | 1520-1520 | EAF Roof, Steel Rolling Mill, Steel Ladle & other high heat duty special applications. |
| MMP 80P | 78-81 | 1.5-2.0 | 18-20 | 2.80 | 850-1000 | ±0.15 at 0.2 | 1820/37 | 1520-1520 | Phosphate-bonded bricks for Reheating Furnace & Steel Ladle. |
| MMP 85 | 82-85 | 1.4-1.8 | 15-19 | 2.80 | 900-1200 | ±0.15 at 0.2 | 1850/38 | 1540-1580 | High alumina applications in Steel Ladle, Reheating Furnace & High abrasion spalling resistance applications. |
| MMP 85P | 82-85 | 1.4-1.8 | 13-17 | 2.85 | 950-1200 | ±0.15 at 0.2 | 1850/38 | 1540-1580 | Wet-molded Phosphate-bonded bricks for Aluminium Melting & Holding Furnace. |
| MMP 88RB | 86-89 | 1.0-1.8 | 12-16 | 2.90 | 1000-1300 | ±0.15 at 0.2 | 1850/38 | 1580-1620 | Reheating Furnace Bottom (special coal-fired). |
| MMP SIC85 | SIC = 80-85 | 0.5-1.0 | 14-17 | 2.50 | 600-800 | -0.2 to 0.5 at 1400 C/2h | - | 1620-1680 | Ferro-Alloy Industries, Copper Melting Furnance (in Burner Block & Impact Pad Areas), Boiler (For very high temparature & Reducing Atmosphere) |
| MMP SIC88 | SIC = 84-88 | 0.5-0.8 | 14-17 | 2.50 | 600-900 | -0.2 to 0.5 at 1400 C/2h | - | 1650-1700 | Ferro-Alloy Industries, Copper Melting Furnance (in Burner Block & Impact Pad Areas), Boiler (For very high temparature & Reducing Atmosphere applications) |
